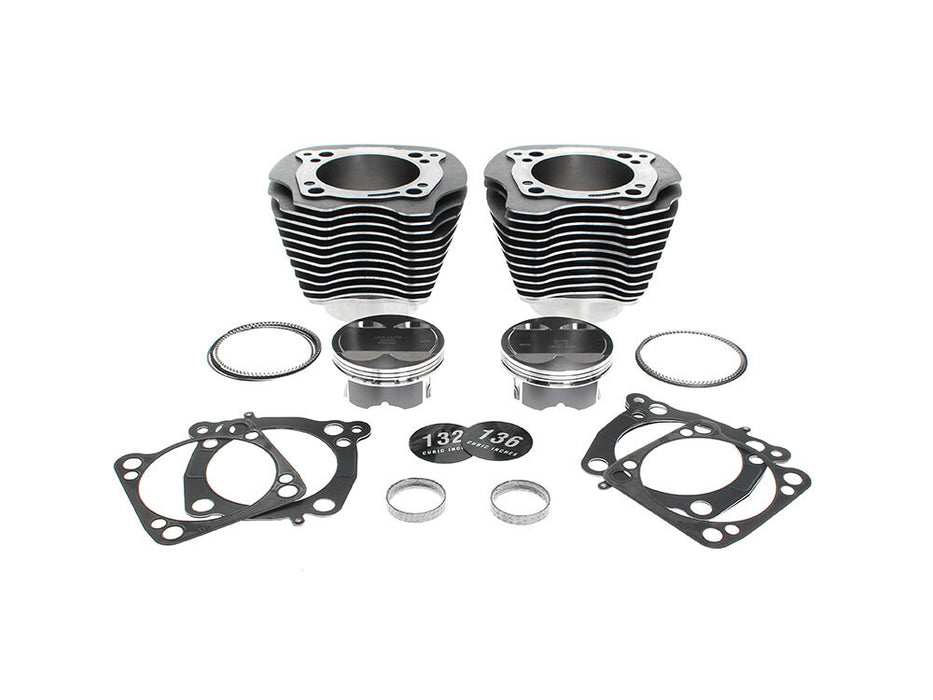

132ci Big Bore Kit with Highlighted Fins & Mid Level Compression - Black Granite. Fits CVO Milwaukee-Eight 2017up with 117ci Engine

Features & Benefits:-

* Upgrades Milwaukee-Eight 117ci CVO models to 132ci or all the way to 136ci with S&S stroker flywheel # SS320-0605

* 4.320" Bore & 4.500" Stroke

* Forged Pistons.

* Compression Ratio with stock 88cc Heads: 132ci is 11.7:1 & 136ci is 12.0:1

* Compression Ratio with SE Extreme 94cc Heads: 132ci is 11.1:1 & 136ci is 11.4:1

* Black Granite Finish With Highlighted Fins.

* Bolt-on Kit, No Crankcase Machining Required.

* Includes Head (0.040") & Base Gaskets & Cam Cover Badge

Suggested Additional Purchase:

Dual spray piston cooling jet kit # SS310-1203

Tech Tips:-

* Will Not Fit 107ci Models.

* Use Care during assembly to avoid damage to Cylinder Spigots.

* Ring gap & Piston to Cylinder Clearance must be checked.

* Rev Limit should be set at 3500 rpm for Initial Run In Period.

* Re-Calibration of Ignition Timing & Fuel Mixture is required.

* NOT compatabile with the HD 4-5/8" stroke flywheel

Proudly Made in the USA by S&S Cycle !
